F3D MkII G2

Brim Style Structural Firefighting Helmet

Designed with the operational needs of structural firefighters in mind, the F3D MkII G2 delivers premium safety, long-lasting comfort, and reliable performance in high-risk environments.

An evolution of the trusted F3C and F3CXL models, the F3D MkII G2 continues the legacy of Pacific’s F3 structural firefighting helmet platform—globally recognised for delivering premium head protection solutions for firefighting and emergency response.

Trusted across Australian and New Zealand fire and emergency services, the F3D MkII G2 combines proven durability with next-generation protection. Its DuPont™ Kevlar® and fibreglass-reinforced composite shell is paired with a full cranium polyurethane liner that provides exceptional impact and penetration resistance. The brim design offers added protection from falling debris and environmental elements while directing water away from the face and neck for improved visibility and comfort. The external face shield delivers high-speed particle protection, is heat- and flame-resistant, and features anti-scratch, anti-fog coatings with optically correct clarity.

The second-generation liner system (G2) includes a 4-point chinstrap with leather cheek padding for secure stability and enhanced comfort. An integrated leather 3D air mesh comfort padding system increases breathability and cushioning, supporting wearer comfort and focus during extended operations. A pivoting rear nape strap with ratchet adjustment ensures a personalised and stable fit.

The adjustable headband accommodates sizes 52–65 cm, with optional downsize kits available for head sizes as small as 48 cm. Each helmet comes standard with a yellow fire-retardant neck protector and a four-piece 3M™ 680 silver/white reflective trim set.

Recommended Uses

Structural Firefighting

Structural Firefighting
AS/NZS 4067:2012, or EN 443:2008

Please note: helmets pictured may be shown with optional features. Please ask your Pacific Helmets representative for more information.

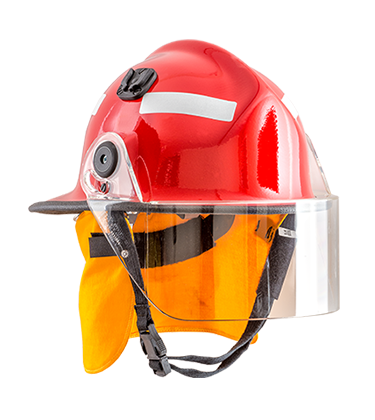

Features of the F3D MkII G2

Note: Feature Compatibilities

Helmet features and accessories are aligned with applicable standards and evolving market requirements. In some cases, previously available features may be modified or retired due to compliance updates, customer demand, or product lifecycle decisions.

Included Features

Provides integral strength and outstanding penetration protection. Lightweight, with inherent heat and flame resistance; also resistant to chemicals and UV exposure.

Offers excellent thermal insulation and shock absorption through a unique crumple zone. Supports internal air circulation for added comfort.

Accommodates head sizes from 52–65 cm (6 ½”–8 ⅛” hat size). Easily adjusted with a single gloved hand.

Secure and easy to operate with gloved hands. Leather cheek padding enhances comfort and helmet stability.

Fully modular and easily removed for decontamination or replacement—no special tools required.

Provides high-speed particle protection. Heat and flame resistant with anti-scratch, anti-fog coatings and optically correct clarity.

Enables attachment of a helmet-mounted torch. Compatible with UK3AA eLED or Adaro Adalit L5 torches using the appropriate clip.

Supplied in yellow FR cotton.

Allows convenient helmet storage on hooks or racks when not in use.

Premium 4-piece 3M™ 680 Silver/White reflective set enhances low-light visibility.

Brigade and department logos or badges available on request. *Design file specifications and requirements apply.

Specifications

Colour Availability

Standard:
Yellow, Red, Black, White, Orange, Rescue Blue & UK Green

Premium:
Silver, Hi-Vis Lime

Care

All parts can be removed with simple tools to enable your helmet to be cleaned and maintained. See the User Information Guide for more information.

Certification

Helmet certified to the following standards:

AS/NZS 4067:2012 Structural Firefighting

Face Shield is certified to the following standards:

EN 14458:2004
AS/NZS 1337.1:2010 Eye & Face Protection
EN166:2001 Eye Protection

Warranty

Parts are covered for manufacturing defects and vary from 1-6 years for different helmet components.

Express: 10-year warranty: shell, liner, suspension

Limited: 2-year warranty: ear flaps, eye/face protection, chinstrap, trim

See the User Information Guide for more information.

Warranty Statement.

Accessories

The F3D MkII is compatible with lighting solutions such as the Underwater Kinetics eLED and Adaro Adalit L5 Torches, and can be fitted with Titan Firecomms with helmet mounted boom microphone and speaker systems. Some accessories may require selected helmet features.
